Hydraulic Hose Press Machine Air Hose Fitting Crimper Hose Pipe Crimping Machine

Name: Hydraulic Hose Press Machine Air Hose Fitting Crimper Hose Pipe Crimping Machine
Brand: MENSION
Price: 1 USD

Cheap Hydraulic Hose Press Machine Air Hose Fitting Crimper Hose Pipe Crimping Machine for sale

Brand Name : MENSION

Model Number : MS-P180

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Price : Contact Us

Crimping Range : 14 - 127mm

Hose Size : 1/4 - 4inch

Die Sets : 27

Color : Grey and Blue

Max. Opening : 80mm

Crimping Force : 980T

Product Name : P180 Hose Pressing Machine

Application : Production

System Pressure : 31.5Mpa

Power : 6.5KW

Size : 780*1050*1650mm

Weight : 1520Kg

Contact Now

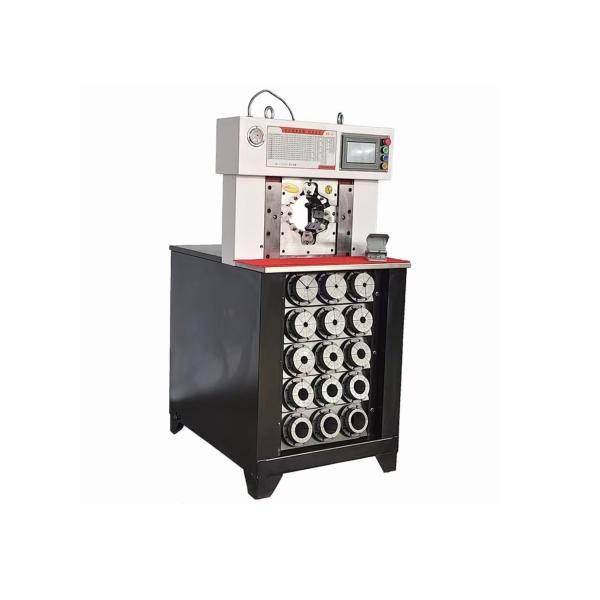

HYDRAULIC HOSE PRESS MACHINE MS-P180

DESCRIPTION

MS-P180 is a super thin hydraulic hose crimping machine with heavy duty, it is capable of pressing small rubber hose 1/4'' and also capable of crimping big 4'' six wires high pressure hose.

MAIN FEATURES

1. Thin cylinder, easy fed for 90 degree fitting;

2. Big crimping power;

3. High efficiency

TECHNICAL DATA

Model	MS-P180 Hose Pressing Machine
Crimping Range	14 - 127(mm)
Crimping Force	980 (T)
Hose Size	1/4 - 4 (inch)
Max. Opening	80 (mm)
Die Sets	27
Die Set Type	P32 P180
System Pressure	31.5 (Mpa)
Accuracy	0.01 (mm)
Control	UC
Standard Voltage	380 (V)
Motor Power	3.75 (KW)
Length	780 (mm)
Width	1050 (mm)
Height	1650 (mm)
Weight	1520 (KG)

Hydraulic Hose Press Machine Air Hose Fitting Crimper Hose Pipe Crimping Machine

NOTE

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;

P180 STANDARD DIE SETS

Die No.	Crimping Range
6*	6 - 8mm
8*	8 - 10mm
10*	10 - 12mm
12*	12 - 14mm
14	14 - 16mm
16	16 - 19mm
19	19 - 22mm
22	22 - 26mm
26	26 - 30mm
30	30 - 34mm
34	34 - 39mm
39	39 - 45mm
45	45 - 51mm
51	51 - 57mm
57	57 - 63mm
63	63 - 69mm
69	69 - 74mm
74	74 - 80mm
78	78 - 87mm
84	84 - 92mm
92	92 - 100mm
100	100 - 108mm
108	108 - 116mm
116	116 - 126mm
126	126 - 136mm
136	136 - 146mm
146	146 - 156mm
156	156 - 166mm
166	166 - 178mm
178	178 - 190mm
190	190 - 202mm
