Hydraulic Cable Crimping Machine Air Hose Fitting Crimper Finn Power Swager

  • 1
  • 2

Brand Name : MENSION

Model Number : MS-E180

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Price : Contact Us

Crimping Range : 14 - 167mm

Hose Size : 1/4 - 4inch

Die Sets : 18

Color : Grey and Blue

Max. Opening : 45mm

Crimping Force : 980T

System Pressure : 31.5Mpa

Power : 7.5KW

Size : 800*650*880mm

Weight : 510Kg

Contact Now

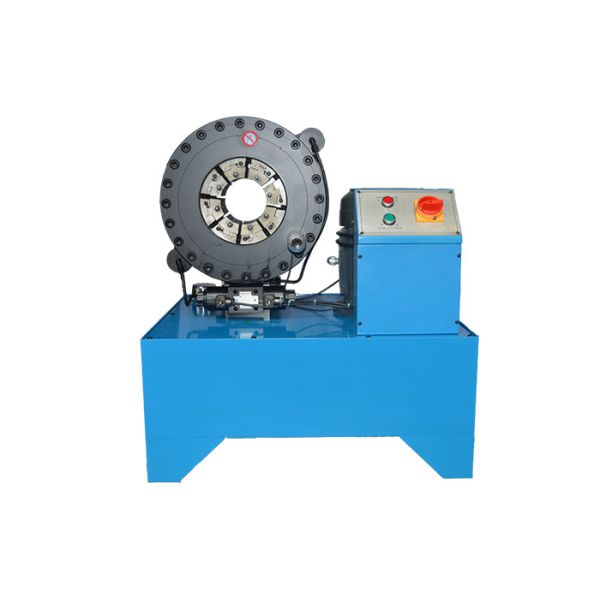

HYDRAULIC CABLE CRIMPING MACHINE MS-E180

DESCRIPTION


MS-E180 is hose crimper for industrial hose and hydraulic hose up to 4 inch 6 spirals. It has big opening, so can easily let large hose go through the head.

MAIN FEATURES


► Compact structure with light weight
► Thicken machine body, long service time
► High accurate crimping dial


TECHNICAL DATA

Model

MS-E180 Hydraulic Hose Crimping Machine

Crimping Range

14 - 167 (mm)

Crimping Force

980 (T)

Hose Size

1/4 - 4 (inch)

Max. Opening

45 (mm)

Die Sets

18

Die Set Type

32 180

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

380 (V)

Motor Power

7.5 (KW)

Length

800 (mm)

Width

650 (mm)

Height

880 (mm)

Weight

510 (KG)


Hydraulic Cable Crimping Machine Air Hose Fitting Crimper Finn Power Swager

E180 CRIMPING MACHINE DIE SETS

Die No.

Crimping (mm)

 Length (mm)

6*

6.0 - 8.0

 55

8*

8.0 - 10.0

 55

10*

10.0 - 12.0

 55

12*

12.0 - 15.0

 55

15

15.0 - 18.0

 55

18

18.0 - 21.0

 55

21

21.0 - 24.0

 55

24

24.0 - 27.0

 55

27

27.0- 33.0

 55

33

33.0 - 39.0

 75

39

39.0 - 45.0

 75

45

45.0 - 51.0

 90

51

51.0 - 57.0

 90

57

57.0 - 66.0

 100

66

66.0 - 73.0

 110
73 73.0 - 90.0 110
90 90.0 - 96.0 120
96 96.0 - 102.0 120
102 102.0 - 108.0 120
108 108.0 - 114.0 120
114 114.0 - 123.0 120
123 123.0 - 136.0 120


NOTE


• " * " for non standard die sets
• Customized die sets are available
• Special voltage 110V, 208V, 240V, 415V are availbale

► BIG CRIMPING CYLINDER


Crimping head with wide range, for big size hydraulic hose
Hydraulic Cable Crimping Machine Air Hose Fitting Crimper Finn Power Swager

► MICROMETER WITH HIGH ACCURACY


The high precision dial makes the machine capable for crimping special material
Hydraulic Cable Crimping Machine Air Hose Fitting Crimper Finn Power Swager

► FOOT PEDAL


The pedal switch free the hands during crimping for bigger hose
Hydraulic Cable Crimping Machine Air Hose Fitting Crimper Finn Power Swager

► BIG PRODUCTIVITY


Hydraulic Cable Crimping Machine Air Hose Fitting Crimper Finn Power Swager
