Electric Manual Hose Crimping Machine 2 Inch Hydraulic Hose Crimper

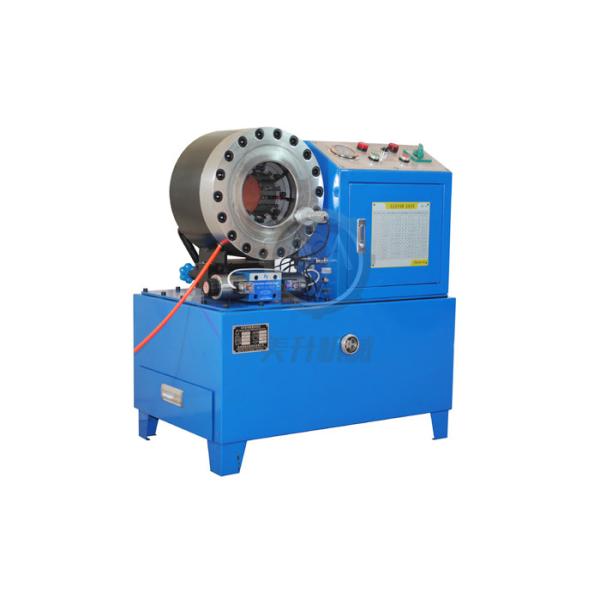

R13 HYDRAULIC HOSE CRIMPING MACHINE MS-51
DESCRIPTION
Our state-of-the-art High Pressure Hose Crimping Machine sets a new standard for precision and efficiency in hose assembly. Designed for various industries such as hydraulics, automotive, and manufacturing, it ensures secure and leak-free connections.
Experience the flexibility of this versatile machine, capable of crimping a wide range of hose sizes and types. Its intuitive interface and user-friendly controls enable operators to achieve accurate and consistent crimps, reducing downtime and optimizing productivity.
With its robust construction and advanced safety features, this machine guarantees durability and operator protection. Upgrade your hose assembly process with our High Pressure Hose Crimping Machine, delivering exceptional reliability and empowering your operations.
MAIN FEATURES
1. Precision Crimping Capability: Accurate and Consistent Crimps.
2. Versatile Hose Compatibility: Wide Range of Applications.
3. User-Friendly Interface: Intuitive Controls, Easy Operation.
4. Robust Construction: Durable and Long-Lasting.
5. Enhanced Safety Features: Operator Protection, Peace of Mind.
TECHNICAL DATA
| Model | MS - 51 Hose Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 500 (T) |
| Hose Size | 1/4 - 2 (inch) |
| Max. Opening | 30 (mm) |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.05 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) Single Phase |
| Motor Power | 3 (KW) |
| Length | 670 (mm) |
| Width | 430 (mm) |
| Height | 820 (mm) |
| Weight | 260 (KG) |
51 HOSE CRIMPER DIE SETS
| Die No. | Crimping (mm) | Length (mm) |
| 6* | 6 - 8 mm | 35 |
| 8* | 8 - 10 mm | 35 |
| 10* | 10 - 12 mm | 35 |
| 12* | 12 - 15 mm | 35 |
| 15 | 15 - 19 mm | 60 |
| 19 | 19 - 23 mm | 60 |
| 23 | 23 - 26 mm | 60 |
| 26 | 26 - 31 mm | 60 |
| 31 | 31 - 36 mm | 70 |
| 36 | 36 - 41 mm | 70 |
| 41 | 41 - 47 mm | 70 |
| 47 | 47 - 55 mm | 80 |
| 55 | 55 - 63 mm | 80 |
| 63 | 63 - 69 mm | 80 |
| 69* | 69 - 76 mm | 90 |
NOTE
• " * " for non standard die sets
• Customized die sets are available
• Special voltage 110V, 208V, 240V, 415V are availbale
OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
• UC Control
► CRIMPING MACHINE ARE MAINLY USED FOR HYDRAULIC HOSE ASSEMBLY MAKING
